Panel Guide

Pyronix Euro 280 – RS232

Panel Connection – Serial RS232

Manufacturer	Pyronix
Model	Euro
Version	280
Minimum DualCom Pro Firmware	DualCom Pro: V2.24 DualCom Pro 2: V2.0.1
Minimum Panel Firmware	V9.54d
Cable required?	Use the FPRS232 module and use a standard 3 wire cable.
Panel Profile	Pyronix-Euro-RS232
Panel Bus Connection	RS232
Technical Notes	The FPRS232 module can be bought from Pyronix themselves.

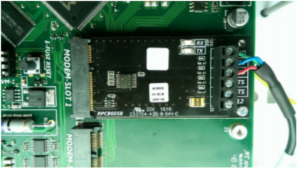

PCB

Enter “Engineer Mode” > Select “Program ARC/SMS” > Select “Calls”
Set “ARC/SMS” to “Enabled” [0] > Select “ARC Details” [1] and set “Active” to “Yes” [1] > Set
“Format” to “WebWayOne” [141]
Set “SIA Ack Char” [006] > Set “SIA Nack Char” [021] > “Valid Areas” is Engineer’s choice > “Area
Accounts” is Engineer’s choice
Set “ARC Account” to “Site ID/Account No” > Set “Content” [1-32] Engineer’s choice
Set “Redials” [03] > “Set Time Out Seconds” [30] > Set “Test Calls” Engineer’s choice
Exit “Engineer Mode” into “Day Mode”

Enter engineer mode and press NO until “SET UP DOWNLOADING?” is displayed, then press YES.
Go to ‘Set Up Downloading’
Set “Download by” to (WebWayOne) [4]
Set “Poll Timeout” [10]
Set “Modem Init Timeout” [060]
Set “Rings to Answer” [1]
Set “Comm Tx Timeout” [030]
Set “Comm Dial Tmout” [030]
Set “UDL Tx Timeout” [02]
Set “Redials” [03]
Set “Roving Dial” to No [0]
Set “Auto Upload” to “No” [0]
“UDL Password” is Engineer’s choice
“Site Name” is Engineer’s choice
Go into “Communications Menu” and select “No “until “Advanced Communications”
Press “Yes” until “ARM PC Tel NO.” and enter 1111
