Panel Guide
Kentec Syncro and Solo Series – RS232
Panel Connection – RS232
Manufacturer | Kentec |
Model | Syncro and Solo series |
Cable required? | A dual row, 10-way terminal housing with 2.54mm pitch with pins 1, 5 and 7 wired. |
Panel Profile | KENTEC-FIRE-RS232 |
Panel Connection | RS232 |
Technical Notes | The panel profile defaults to EN54 Fire Mode. Please contact Tech Support if you require to configure the panel in non-Fire mode. If an EN54-compliant installation is required, please also follow the instructions in the DualCom Pro 2 Fire EN54 Variant Quick Guide. |
DualCom Pro to Panel Wiring
Panel Connection Information

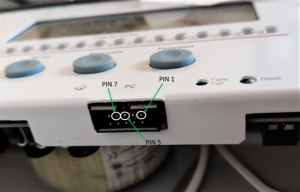

RS232-T | Pin 1 |
RS232-R | Pin 7 |
RTN | Pin 5 |
Panel Setup
The SPT expects the panel address to be 1. This can be viewed using the panel manufacturer’s software and ensuring the node address is set to 1 in the Configure Node window.
