Panel Guide
Siemens FC20 Fire – RS232
Panel Connection – RS232
Manufacturer | Siemens |
Model | FC20xx series of fire panels with RS232 Module |
Panel Profile | SIEMENS-FC20-PRINTER-DK-ONLY |
Panel Connection | RS232 |
Technical Notes | Panel should be set to output Danish. All unrecognised panel events are delivered as SIA YO (unknown message event) If an EN54-compliant installation is required, please also follow the instructions in the DualCom Pro 2 Fire EN54 Variant Quick Guide. |

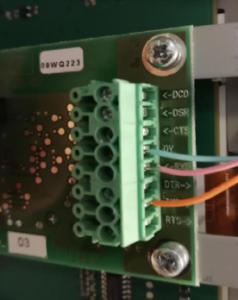

DualCom Pro to Panel Wiring
RS232-T | Pin 5 (pink) – RXD |
RS232-R | Pin 7 (orange) – TXD |
RTN | Pin 4 (light blue) – 0V |
Panel Setup
Only settings required in the panel is to select the Standard External Printer and the settings to default. Further details are to be found in the FC20 manual provided by the manufacturer.
The DualCom Pro expects the printer port to be set to 9600 baud.
