Quick Guide
Introduction
The CSL Signal Analyser is a portable, battery operated device for monitoring Cellular and Wi-Fi signal strength.
Warnings:
This product should only be charged with the supplied charger. Use of an incorrect charger may result in unintended consequences.
This product is compliant with Class A EMC requirements. Operation of this device in a residential environment could cause radio interference.
Instructions For Safe Use:
Do not expose the device to water or any other liquid. Liquids may cause a short circuit and damage to the device.
The provided stylus should be used to input on the device. Excessive pressure to the device could crack the device and may also injure the user.
The device should not be used while driving a car or other motor vehicle.
First Time Use/Setup
This section provides basic information to enable you to set up your Signal Analyser quickly.
AERIAL
Connect the aerial on top of the device.
POWERING UP YOUR DEVICE
1. Make sure the battery is fully charged using the Micro USB port on the bottom of the device (this typically takes 2 hours). The device will not operate correctly for surveys or monitoring while a USB is connected.
2. Once power is connected the device will turn on.
THE FIRST EVER POWER UP MAY TAKE 2-3 MINUTES AS THE UNIT WILL BE DOING A BACKGROUND NETWORK SEARCH TO ESTABLISH THE AVAILABLE NETWORKS IN YOUR LOCATION
FITTING A SIM
A SIM is only required when using Monitor Mode and not when performing single or multiple network surveys
1. Ensure your device is powered down and insert the SIM into the SIM slot on the bottom right hand side of your Signal Analyser. To remove the SIM, use a pen to depress before detaching. When a SIM is inserted a SIM Icon will be displayed in the top left hand corner of the screen
IF YOU WISH TO USE A MICRO/NANO SIM YOU WILL NEED TO USE THE SIM CARRIER SUPPLIED
2. Place the SIM inside the carrier and push this into the SIM slot on the bottom right-hand side of your Signal Analyser. To release use a pen to depress the SIM carrier and then detach
HELP TEXT
1. Press and hold (for 3 seconds) the icon you would like explaining. A pop-up box will then show the description
2. To close the pop-up box press the X in the top right-hand corner

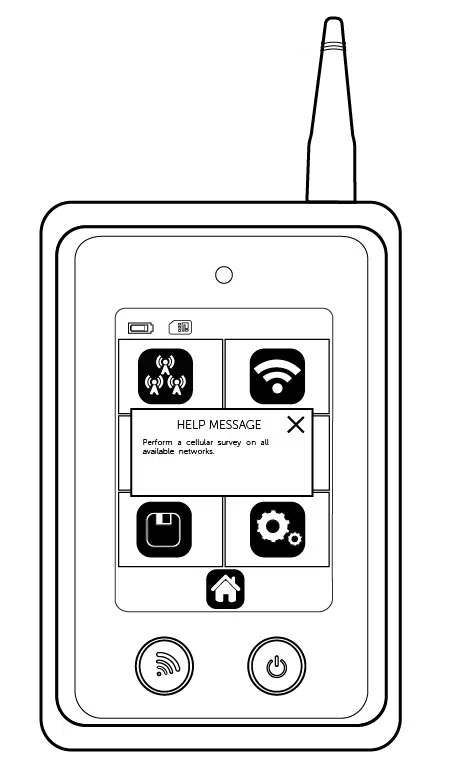

Figure 2 – Help Text
Site Survey (Radio)
MULTI NETWORK SURVEY
1 – Select the Cellular icon on the home screen
.
2 – Select the Multi Network icon .
3 – Choose either 2G, 3G, 4G or all technologies (for the 2G variant the technology will be limited to 2G only).
4 – Select the Start icon
for the survey to begin. If you wish to name the survey before you start select the Name Survey icon , name your survey
and press Go
.
5 – A Survey Progress bar will then display the status of your survey. The survey should take 2-3 minutes.
6 – Once the survey has been completed the results will be available.
SINGLE NETWORK SURVEY
1 – Select the Cellular icon on the home screen .
2 – Now select the Single Network icon
.
3 – Choose either 2G, 3G, 4G or all technologies (for the 2G variant the technology will be limited to 2G only).
4 – Select the required network (if you can’t see your preferred network press refresh so that the unit locates all available networks in the area). You can also select Any Network option which allows the radio module to decide which is best for your location.
REFRESHING NETWORKS MAY TAKE 2-3 MINUTES
5 – Select the Start icon for the survey to begin. If you wish to name the survey before you start select the Name Survey Icon , name your survey and press Go .
6 – A survey progress bar will then display showing the progress of the survey. The survey should take 2-3 minutes.
7 – Once the survey has been completed the results will be available.
Survey Results (Radio)
TOP NETWORKS
Shows the highest signal strength readings for each available network in your location; up to 5 networks will be displayed (if available). Press the right arrow to enter the Best Cells section.
BEST CELLS
Shows the highest signal strength readings across all technologies and networks in your location; up to 5 cells will be displayed (if available). Press the right arrow to enter the Cell Properties section.
CELL PROPERTIES
Shows basic information for each cell. To view advanced information press the screen in the appropriate area. See below for more information. If further results are available use the down arrow to view these.
ADVANCED CELL PROPERTIES
| PARAMETER | DESCRIPTION | TECHNOLOGY |
| Network | The network to which the cell belongs | 2G, 3G, 4G |
| Type | The radio technology | 2G, 3G, 4G |
| Cell Number | The cell number you are investigating | 2G, 3G, 4G |
| ARFCN | The cell carrier assigned radio channel (BCCH – Broadcast Control Channel) | 2G |
| BSIC | Base Station Identification Code | 2G |
| RSSI (RxLev) | Reception Level (in dBm) | 2G, 3G, 4G |
| BER | Bit Error Rate (in %) | 2G |
| MCC | Mobile Country Code | 2G, 3G, 4G |
| MNC | Mobile Network Code | 2G, 3G, 4G |
| LAC | Location Area Code | 2G, 3G |
| CELLID | Cell Identifier | 2G, 3G |
| Cell Status | Cell status; Outputs [suitable, low priority based on the received system information, forbidden, barred based on the received system information, low level, unknown] | 2G, 3G, 4G |
| NUMARFCN | Number of valid channels in the Cell Channel Description | 2G |
| ARFCNN | ARFCN of a valid channel in the Cell Channel Description | 2G |
| NUM CHANNELS | Number of valid channels in the BCCH Allocation list | 2G |
| BAN | The ARFCN of a valid channel in the BA list | 2G |
| SCR CODE | Scrambling Code | 3G |
| RSCP | Received Signal Code Power – RSCP level (in dBm) | 3G |
| ECIO | EC/IO ratio level (in dB) | 3G |
| BW | Bandwidth (in MHz) | 4G |
| TAC | Tracking Area Code | 4G |
| UARFN | The cell carrier frequency designated by UTRA Absolute Radio Frequency Channel | 3G |
| EARFCN | Cell carrier frequency designated by EUTRA Absolute Radio Frequency Channel Number | 4G |
| PHY CELL ID | Physical Cell ID | 4G |
| RSRP | Reference Signal Received Power | 4G |
| RSRQ | Reference Signal Received Quality – RSRQ level (in dBm) | 4G |

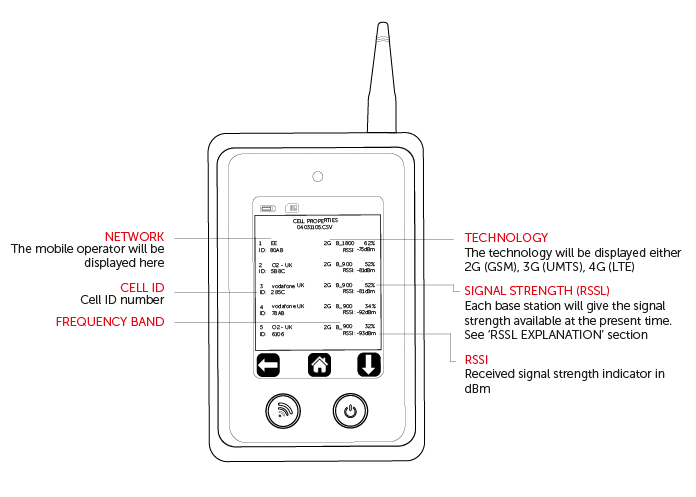

Figure 3 – Cell Properties

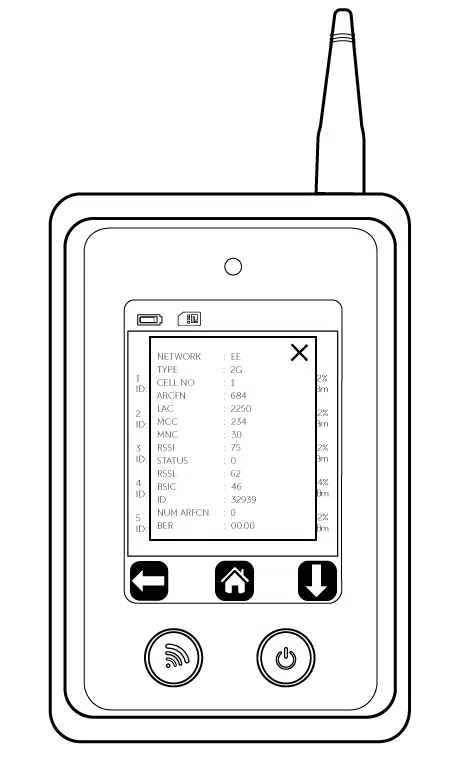

Figure 4 – Advanced Cell Properties
Site Survey (Wi-Fi)
WI-FI SURVEY
1 – Select the Wi-Fi icon on the home screen
2 – Select the Start icon for the survey to begin. If you wish to name the survey before you start select the Name Survey Icon , name your survey, and press Go
3 – A survey progress bar will then display, showing the progress of the survey. The survey should take 5-10 seconds
4 – Once the survey has been completed the results will be available
Survey Results (Wi-Fi)
TOP SSID
Shows the highest signal strength readings for each available SSID in your location and the number of Access Points (APs); up to 5 networks will be displayed (if available). Press the right arrow to enter the Best Access Points section.
BEST ACCESS POINTS
Shows the Best Access Points for your location and the channel number. Press the right arrow to enter the Access Point section.
ACCESS POINT PROPERTIES
Shows basic information for each SSID. To view advanced information, press the screen in the appropriate area. See below for more information. If further results are available use the down arrow to view these.
Monitor Mode (Radio)
1 – If you are performing Monitor Mode, ensure a SIM card is inserted as per the ‘FITTING A SIM’ section. The SIM card used must be the technology required or higher e.g. 4G is capable of performing Monitor Mode for 4G, 3G, and 2G. The SIM does not need to be for the same network provider you wish to monitor.
2 – Select the Monitor Mode icon
.
3 – Select the Single Network icon .
4 – Choose either 2G, 3G or 4G or any network (for the 2G variant the technology will be limited to 2G only).
5 – Select the required network (to ensure all available networks are displayed press refresh).
REFRESHING NETWORKS MAY TAKE 2-3 MINUTES
6 – Live Monitor Mode will now run.
Monitor Mode Result (Radio)

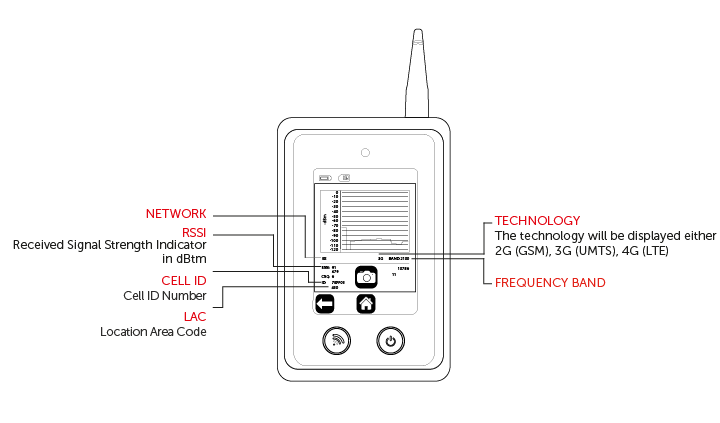

Figure 5 – Monitor Mode
MONITOR MODE SNAPSHOT
1 – Ensure Monitor Mode is running
2 – Press the Snapshot icon
3 – The rename survey option will automatically display, name the survey then press Go to save. A file will now be created, but can only be viewed in a table format on your laptop/PC (you will not see a graph).
Monitor Mode (Wi-Fi)
1 – Select the Monitor Mode icon
2 – Select the Wi-Fi icon
3 – Choose either SSID, Channel, MAC, Connect
SSID
Live Monitor Mode will run on a specific SSID
1 – Select the SSID icon
2 – Choose the SSID you wish to monitor (to ensure all available SSIDs are displayed press refresh)
3 – Live Monitor Mode will now run
CHANNEL
Live Monitor Mode will run on a specific channel
1 – Select Channel icon
2 – Choose the channel you wish to monitor
3 – Live Monitor Mode will now run a list of Access Points (APs) per channel which will be displayed via a table. Push any channel with APs present to view the SSIDs and signal strengths (in dBm)
MAC
Live Monitor Mode will run on a specific MAC address
1 – Select MAC icon
2 – Select the MAC address you wish to monitor
3 – Live Monitor Mode will now run
CONNECT
Connect to a specific SSID and run live Monitor Mode
1 – Select the connect icon
and it will constantly signal Google to provide you with ping times in ms
2 – Select the SSID you wish to connect to
3 – Enter the password for the SSID you have selected
4 – Live Monitor Mode will now run
Monitor Mode Results (Wi Fi)
SAVE RESULTS
1 – Ensure Monitor Mode is running
2 – Press the Save Results icon
3 – The Rename Survey option will automatically display, name the survey then press Go to save. A file will now be created, but can only be viewed in a table format on your laptop/PC (you will not see a graph)

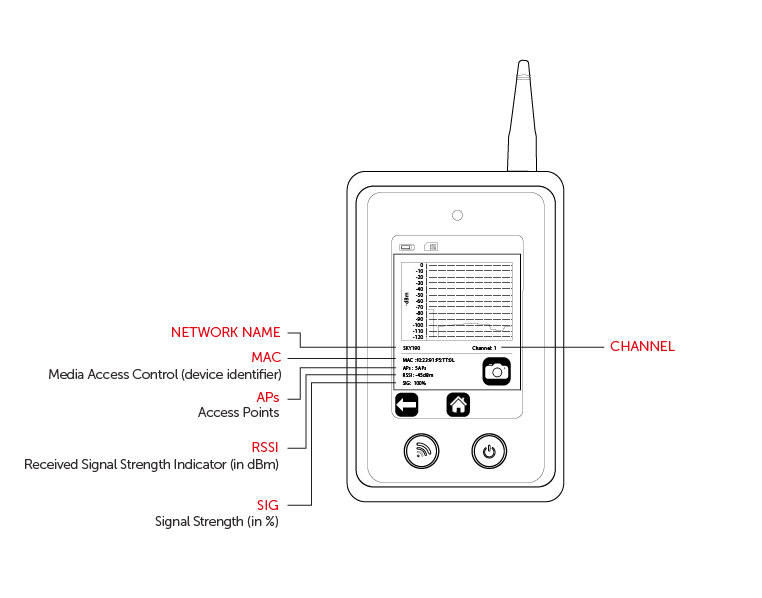

Figure 6 – Wi-Fi monitor when SSID, MAC and Connect options are selected

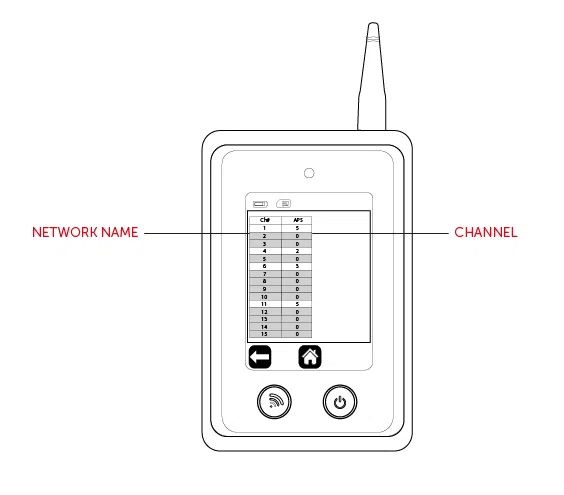

Figure 7 – Wi-Fi monitor when the Channel option is selected
Saved Files
Viewing Saved Files
1 – Select the Saved Results icon
. Results will be shown in descending order by time.
2 – Then select either the Multi Cellular icon or Wi-Fi . Results will be shown in descending order by time.
3 – Select the file you wish to view. Results will now be shown in the same format as per the ‘RESULTS’ section.
Deleting Saved Files
1 – Select and hold the file you wish to delete. A Delete icon
will now show in the top right hand corner.
2 – Press delete. This file has now been deleted.

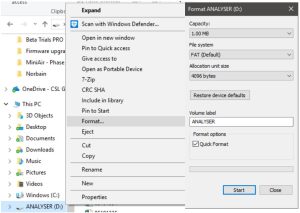

Downloading Saved Files
1 – Ensure the Signal Analyser is switched on.
IF THE DEVICE IS SWITCHED OFF AND CONNECTED TO THE USB PORT ON A PC/LAPTOP THIS WILL CHARGE THE DEVICE ONLY
2 – Connect the Signal Analyser via a USB lead to your PC/Laptop.
3 – Once connected click on Start then select Computer. The Signal Analyser files will be shown under devices with removable storage.
4 – Select Analyser.
5 – Select the applicable folder (Cellular Snapshot, Cellular Survey, Wi-Fi Snapshop and Wi-Fi Survey) and your results will be displayed as a list of CSV files.
6 – These files can now be copied to a folder or displayed using a CSV file editor.
YOU CANNOT READ/WRITE FILES AND RUN A SURVEY WHILE THE SIGNAL ANALYSER IS CONNECTED TO THE USB PORT, THIS MAY CAUSE THE UNIT TO CRASH
Settings
Enter the settings menu
| ICON | DESCRIPTION | FUNCTION |
| Brightness Icon
| Adjust brightness | Increase/decrease brightness |
| Languages Icon
| Change device language | Select language |
| Time Icon
| Set time/date | Set time/date |
| Auto-Off Icon
| Define how long the device stays powered on with no action | Set auto-off time |
| Default Survey Icon
| Define which survey the quick survey button on the front of the device executes | Select survey |
| Sounder Icon
| Turn sound on/off | Turn sound on/off |
| Power Save Icon
| Power saver to send radio module to sleep | Turn power save on/off |
| Device Information Icon
| View firmware version | View firmware version, Radio module, Radio firmware, IMEI, SIM status |
| Factory Reset Icon
| Restore factory defaults | Complete a factory reset back to default settings |
Technical Specs
Technical Specifications

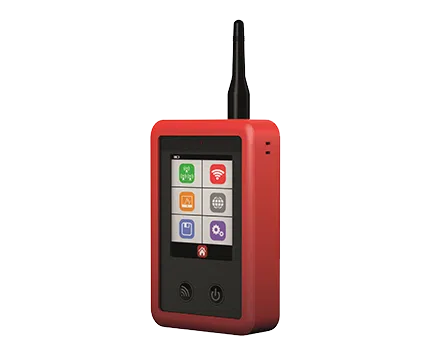

Figure 1 – Signal Analyser Diagram
SPECIFICATIONS
| Model | CS2389 2G/GSM, 3G/UMTS, 4G/LTE |
| Dimensions | 172mm (h) x 72mm (w) x 20mm (d) |
| Weight | 149g including aerial |
| Temperature | -20°C to + 60°C transit, -4°C to +40°C operating |
| Humidity | 0-80% non-condensing |
| Warranty | 2 years |
| Radio Technology | GSM, UMTS, LTE, Wi-Fi 2.4Ghz (depending on version) |
| Battery | 3.7 Volt 1500mAh |
| Charger | 5 Vdc micro USB plug-top charger or equivalent |
FREQUENCY BAND
| Part Number | CS2389 |
| 4G Bands (MHz) | 2100 (B1) 1900 (B2) 1800 (B3) 1700 (B4) 850 (B5) 2600 (B7) 900 (B8) 700 (B12) 700 (B13) 700 (B14) 850 (B18) 1900 (B25) 850 (B26) 850 (B19) 800 (B20) 700 (B28) |
| 3G Bands (MHz) | 2100 (B1) 1900 (B2) 1700 (B4) 850 (B5) 850 (B6) 900 (B8) 850 (B19) |
| 2G Bands (MHz) | 1900 (B2) 1800 (B3) 850 (B5) 900 (B8) |
| Wi-Fi | 2.4Ghz |
CERTIFICATIONS
International Radio Approval
The CS2389 Signal Analyser incorporates an independently tested and approved 4G/3G/2G radio module that meets the requirements of European radio communication standards
Approval Authority: 0063
FAQs
Does the 4G Analyser work outside of the EU?
The radio module in the device is able to work worldwide and therefore the device is able to work in most countries, subject to local approval.
Does the 4G Analyser work in the Republic of Ireland?
Yes, the 4G Signal Analyser works in Ireland.
Is Wi-Fi included in all 4G Testers?
Yes, there is a 2.4GHz Wi-Fi chip included with the Signal Analyser to perform Wi-Fi Surveys or run Monitor Mode to view the available SSIDs, channels or MAC addresses and to ping an IP address to check response times.
Do I need to use a SIM?
A SIM is not needed for surveys. It is only required when using Monitor Mode.
The SIM used must be at least the same RAT (i.e. 2G/3G/4G) that you are looking to monitor but should be a roaming SIM. Speak to CSL about purchasing one of these if you do not have one.
Can I use my own SIM?
Yes, any SIM can be used as long as the pin code function has been removed.
If you wish to use a micro or nano SIM, the SIM carrier provided must be used to make it the required size and ensure it fits into the device correctly.
I am running a survey but want to cancel?
While a survey is running you cannot cancel or complete any other actions, you must wait for the survey to complete or power off the device.
What is the difference between Battery Saver and Auto Turn Off?
Battery Saver puts the radio module into sleep mode and dims the brightness of the screen to save battery power.
Auto Turn Off enables you to select a time, that if the unit is not in use, it will automatically power off to conserve battery power (as standard this is set to 5 minutes).
Why can’t I see all the networks? (in Single Network or Monitor Mode)
If you can’t see your preferred network try refreshing the network. After this refresh the networks available in your location will be displayed. If you still can’t see your chosen network, it may be that it is not available in that area.
What do the icons mean?
If you are unsure what the function of an icon is, you can use the Help Text function to display a description (press and hold the icon for 3 seconds).
My device appears to be performing slower than it used to. What is the cause?
If your Signal Analyser is close to reaching the maximum number of saved files (240), it takes longer to process tasks. Delete old saved files to free up space.
Instructions can be found under the ‘DELETING SAVED FILES’ section in the Quick Guide.
To view the storage space, go to:
Settings > Device Information (it will be shown within the storage space bar).
Why does the device take so long to boot up?
The boot up sequence ensures the radio module is ready to use. With newer versions of the product, this boot up time has been extended to incorporate the worldwide radio module being ready to start a survey.
Useful Information
Signal Analyser Datasheet
Key Features
- Ideal for deploying any mobile application
- Live monitor function to find the optimum installation location (SIM required for 4G)
- 4G versions are backwards compatible (2G/3G/4G)
- 2.4Ghz Wi-Fi (4G version only)
- Rechargeable battery with up to an hour of life and additional battery-saving options
- Multilingual – 11 languages
- Download survey results and live monitor results via USB
- Rain-resistant material and a durable protective cover is provided
- Automatic power down when not in use
Specification
| Model | CS2389 (2G/GSM, 3G/UMTS, 4G/LTE) |
| Dimensions | 172mm (h) x 72mm (w) x 20mm (d) |
| Weight | 149g including aerial |
| Temperature | -20°C to +60°C transit, -4°C to +40°C operating |
| Humidity | 0-80% non-condensing |
| Warranty | 2 years |
| Radio Technology | 2G/GSM, 3G/UMTS, 4G/LTE (depending on version) 2.4ghz Wi-Fi (4G version only) |
| Battery | 3.7 Volt 1500mAh |
| Aerial | SMA Male connector |
| Charger | 5 Vdc micro USB plug-top charger or equivalent |
| Screen Size | 2.8 inch (7.1cm) |
| Screen Resolution | 320 X 240 |
| Screen Type | Resistive touch screen |
| Memory | Holds up to 240 surveys |
| Languages | English, German, Spanish, Italian, French, Danish, Dutch, Finnish, Czech, Portuguese, Swedish |
| Approval | CE |
Bands
| Part Number | CS2389 |
| 4G (LTE) Bands (MHz) | 2100 (B1) 1900 (B2) 1800 (B3) 1700 (B4) 850 (B5) 2600 (B7) 900 (B8) 700 (B12) 700 (B13) 700 (B14) 850 (B18) 1900 (B25) 850 (B26) 850 (B19) 800 (B20) 700 (B28) |
| 3G (UMTS) Bands (MHz) | 2100 (B1) 1900 (B2) 1700 (B4) 850 (B5) 850 (B6) 900 (B8) 850 (B19) |
| 2G (GSM) Bands (MHz) | 1900 (B2) 1800 (B3) 850 (B5) 900 (B8) |
RSSL Explained
Background
RSSL (Relative Signal Strength Level) is a signal strength calculation designed to make it easier for users to understand if the location of their installation is acceptable or not. For performing surveys on 2G (GSM), CSQ was formerly an easy way to measure the signal strength reading. However, this measurement is not consistent across 3G (UMTS) and 4G (LTE) as CSQ does not measure the entire signal strength band. It merely measures a segment of the band with discounted sections above and below the traditional CSQ. For example: A CSQ of 1 in 4G relates to 3% using old CSQ calculations but is actually 32% of the entire signal strength. In this scenario, it is unlikely you would install a device with a perceived value of 3% but possible at 32%.
RSSL Explained
To ensure that a consistent approach is used to measure all Radio Access Technologies (RAT) – such as 2G, 3G and 4G – a new, more accurate method for calculating the percentage of the signal strength has been introduced. RSSL is not based on CSQ readings provided by the radio module alone but is calculated from the raw data received from the network readings. The value is mapped through the whole range and is independent for each RAT. The value calculation includes both signal strength and signal quality measurements.
What Does This Mean?
- The method for obtaining signal levels is technology-independent.
- The minimum CSQ required for units to register in 2G, 3G and 4G are different. The standards only specify minimum thresholds for each type of measurement required by the UE to report to the core network. The requirements for data transmission depend on a wide range of factors e.g. indoor/outdoor cell, in urban or remote location, proximity to the base station.

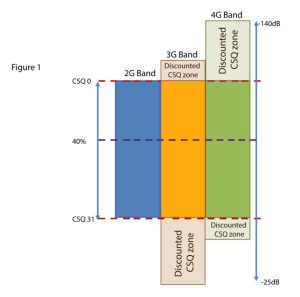

- Percentage representation of CSQ is not relevant, accurate or consistent. Figure 1 depicts the summary of the problem. Clearly using CSQ values omits substantial sections of the 3G and 4G band and what is 40% of the CSQ range in 2G is not equivalent in the other RATs. Achieving the equivalent of 40% CSQ in 2G at the other RATS will be very difficult unless there are strong cells in the neighbourhood.
- It is possible to receive signal levels in the discounted CSQ areas, and in fact the 3GPP specifications clearly indicate that it is possible for 4G to operate below a CSQ of 0.
| 2G | 3G | 4G | |||||||
| dB | CSQ Reading | Proposed RSSL (%) | Remark | CSQ Reading | Proposed RSSL (%) | Remark | CSQ Reading | Proposed RSSL (%) | Remark |
| -140 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 0 | Weak |
| -139 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 1 | Weak |
| -138 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 2 | Weak |
| -137 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 3 | Weak |
| -136 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 4 | Weak |
| -135 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 6 | Weak |
| -134 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 7 | Weak |
| -133 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 8 | Weak |
| -132 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 9 | Weak |
| -131 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 10 | Weak |
| -130 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 11 | Weak |
| -129 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 12 | Weak |
| -128 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 13 | Weak |
| -127 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 15 | Weak |
| -126 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 16 | Weak |
| -125 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 17 | Weak |
| -124 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 18 | Weak |
| -123 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 19 | Weak |
| -122 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 20 | Weak |
| -121 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 21 | Weak |
| -120 | 0 | 0 | Weak | 0 | 0 | Weak | 0 | 22 | Weak |
| -119 | 0 | 0 | Weak | 0 | 2 | Weak | 0 | 24 | Weak |
| -118 | 0 | 0 | Weak | 0 | 3 | Weak | 0 | 25 | Weak |
| -117 | 0 | 0 | Weak | 0 | 5 | Weak | 0 | 26 | Weak |
| -116 | 0 | 0 | Weak | 0 | 6 | Weak | 0 | 27 | Weak |
| -115 | 0 | 0 | Weak | 0 | 8 | Weak | 0 | 28 | Weak |
| -114 | 0 | 0 | Weak | 0 | 9 | Weak | 0 | 29 | Weak |
| -113 | 0 | 0 | Weak | 0 | 11 | Weak | 0 | 30 | Low |
| -112 | 0 | 2 | Weak | 0 | 12 | Weak | 0 | 31 | Low |
| -111 | 1 | 3 | Weak | 1 | 14 | Weak | 1 | 32 | Low |
| -110 | 2 | 5 | Weak | 2 | 15 | Weak | 2 | 34 | Low |
| -109 | 2 | 7 | Weak | 2 | 17 | Weak | 2 | 35 | Low |
| -108 | 3 | 8 | Weak | 3 | 18 | Weak | 3 | 36 | Low |
| -107 | 3 | 10 | Weak | 3 | 20 | Weak | 3 | 37 | Low |
| -106 | 4 | 12 | Weak | 4 | 21 | Weak | 4 | 38 | Low |
| -105 | 4 | 13 | Weak | 4 | 23 | Weak | 4 | 39 | Low |
| -104 | 5 | 15 | Weak | 5 | 24 | Weak | 5 | 40 | Good |
| -103 | 5 | 16 | Weak | 5 | 26 | Weak | 5 | 41 | Good |
| -102 | 6 | 18 | Weak | 6 | 27 | Weak | 6 | 43 | Good |
| -101 | 6 | 20 | Weak | 6 | 29 | Weak | 6 | 44 | Good |
| -100 | 7 | 21 | Weak | 7 | 31 | Low | 7 | 45 | Good |
| -99 | 7 | 23 | Weak | 7 | 32 | Low | 7 | 46 | Good |
| -98 | 8 | 25 | Weak | 8 | 34 | Low | 8 | 47 | Good |
| -97 | 8 | 26 | Weak | 8 | 35 | Low | 8 | 48 | Good |
| -96 | 9 | 28 | Weak | 9 | 37 | Low | 9 | 49 | Good |
| -95 | 9 | 30 | Low | 9 | 38 | Low | 9 | 50 | Good |
| -94 | 10 | 31 | Low | 10 | 40 | Good | 10 | 52 | Good |
| -93 | 10 | 33 | Low | 10 | 41 | Good | 10 | 53 | Good |
| -92 | 11 | 35 | Low | 11 | 43 | Good | 11 | 54 | Good |
| -91 | 11 | 36 | Low | 11 | 44 | Good | 11 | 55 | Good |
| -90 | 12 | 38 | Low | 12 | 46 | Good | 12 | 56 | Good |
| -89 | 12 | 39 | Low | 12 | 47 | Good | 12 | 57 | Good |
| -88 | 13 | 41 | Good | 13 | 49 | Good | 13 | 58 | Good |
| -87 | 13 | 43 | Good | 13 | 50 | Good | 13 | 59 | Good |
| -86 | 14 | 44 | Good | 14 | 52 | Good | 14 | 60 | Strong |
| -85 | 14 | 46 | Good | 14 | 53 | Good | 14 | 62 | Strong |
| -84 | 15 | 48 | Good | 15 | 55 | Good | 15 | 63 | Strong |
| -83 | 15 | 49 | Good | 15 | 56 | Good | 15 | 64 | Strong |
| -82 | 16 | 51 | Good | 16 | 58 | Good | 16 | 65 | Strong |
| -81 | 16 | 53 | Good | 16 | 59 | Good | 16 | 66 | Strong |
| -80 | 17 | 54 | Good | 17 | 61 | Strong | 17 | 67 | Strong |
| -79 | 17 | 56 | Good | 17 | 63 | Strong | 17 | 68 | Strong |
| -78 | 18 | 58 | Good | 18 | 64 | Strong | 18 | 69 | Strong |
| -77 | 18 | 59 | Good | 18 | 66 | Strong | 18 | 71 | Strong |
| -76 | 19 | 61 | Strong | 19 | 67 | Strong | 19 | 72 | Strong |
| -75 | 19 | 63 | Strong | 19 | 69 | Strong | 19 | 73 | Strong |
| -74 | 20 | 64 | Strong | 20 | 70 | Strong | 20 | 74 | Strong |
| -73 | 20 | 66 | Strong | 20 | 72 | Strong | 20 | 75 | Strong |
| -72 | 21 | 67 | Strong | 21 | 73 | Strong | 21 | 76 | Strong |
| -71 | 21 | 69 | Strong | 21 | 75 | Strong | 21 | 77 | Strong |
| -70 | 22 | 71 | Strong | 22 | 76 | Strong | 22 | 78 | Strong |
| -69 | 22 | 72 | Strong | 22 | 78 | Strong | 22 | 80 | Strong |
| -68 | 23 | 74 | Strong | 23 | 79 | Strong | 23 | 81 | Strong |
| -67 | 23 | 76 | Strong | 23 | 81 | Strong | 23 | 82 | Strong |
| -66 | 24 | 77 | Strong | 24 | 82 | Strong | 24 | 83 | Strong |
| -65 | 24 | 79 | Strong | 24 | 84 | Strong | 24 | 84 | Strong |
| -64 | 25 | 81 | Strong | 25 | 85 | Strong | 25 | 85 | Strong |
| -63 | 25 | 82 | Strong | 25 | 87 | Strong | 25 | 86 | Strong |
| -62 | 26 | 84 | Strong | 26 | 88 | Strong | 26 | 87 | Strong |
| -61 | 26 | 86 | Strong | 26 | 90 | Strong | 26 | 88 | Strong |
| -60 | 27 | 87 | Strong | 27 | 92 | Strong | 27 | 90 | Strong |
| -59 | 27 | 89 | Strong | 27 | 93 | Strong | 27 | 91 | Strong |
| -58 | 28 | 91 | Strong | 28 | 95 | Strong | 28 | 92 | Strong |
| -57 | 28 | 92 | Strong | 28 | 96 | Strong | 28 | 93 | Strong |
| -56 | 29 | 94 | Strong | 29 | 98 | Strong | 29 | 94 | Strong |
| -55 | 29 | 95 | Strong | 29 | 99 | Strong | 29 | 95 | Strong |
| -54 | 30 | 97 | Strong | 31 | 100 | Strong | 30 | 96 | Strong |
| -53 | 30 | 99 | Strong | 31 | 100 | Strong | 30 | 97 | Strong |
| -52 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 99 | Strong |
| -51 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -50 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -49 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -48 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -47 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -46 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -45 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -44 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -43 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -42 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -41 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -40 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -39 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -38 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -37 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -36 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -35 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -34 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -33 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -32 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -31 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -30 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -29 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -28 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -27 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -26 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
| -25 | 31 | 100 | Strong | 31 | 100 | Strong | 31 | 100 | Strong |
Signal Analyser Firmware Upgrade Instructions
Step 1
Contact your distributor/place of purchase to obtain a copy of the DfuSe Demo Software required. Install this software on your PC/laptop. Then install the relevant USB driver from:
C:\Program Files (x86)\STMicroelectronics\Software\DfuSe vx.x.x\Bin\Driver
Step 2
With your Signal Analyser powered off, press and hold the ‘quick survey’ button whilst inserting your USB cable into the Signal Analyser and into your PC/Laptop. Once both are connected, release the button. The green LED will flash repeatedly to confirm you are in upgrade mode.
Step 3

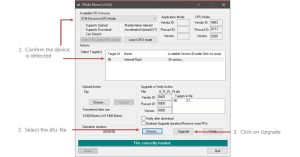

Open the DfuSe Demo Software and follow the points below.
Step 4
Accept any pop-up messages from the DFfuSe software to proceed with the upgrade. Once loaded the software will show that the firmware upgrade has been successful/unsuccessful via the green progress bar.
Step 5
Unplug the USB cable and restart the Signal Analyser. On start-up, the Signal Analyser will display the firmware version (ie G_1_15).
Step 6
It is recommended to format the Signal Analyser once a firmware update has been completed. On your PC/laptop enter the [Computer] menu, locate the Signal Analyser, right click and select format. Click start to format the drive (see image on next page).
