Panel Guide
Honeywell Galaxy G3, Classic, Dimension – RS485 – Telecoms Module
Panel Connection
|
Manufacturer |
Honeywell |
|
Model |
Galaxy |
|
Version |
Dimension, G3, Classic |
|
Minimum Panel Firmware |
V1.4 |
|
Cable required? |
Provided with DualCom Pro |
|
Panel Profile |
Honeywell-Galaxy-PSTN-RS485 |
|
Panel Connection |
RS485 |
Panel Connection Information
|
Manufacturer |
Panel |
Connection |
Cable/Plug On |
Supplied Cables |
|
Honeywell |
Galaxy G3/Dimension |
Telecoms Module |

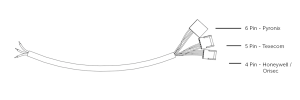

Lead provided with DualCom Pro or normal alarm cable |
Green – RTN |
Panel Programming
- Engineer Menu 56
- Select External Telecoms Module (Option 5)*
- Select Format (Option 1)
- Enter SIA (Option 2)
- Select SIA level 3
- Ensure Trigger 10 is on
- Ensure Trigger 18 is on
- Activate any further triggers which are required
- Select Tel No. 1 (Option 2)
- Set Phone number (01234 567890)
- Select Account Number (Option 3)
- Enter Site ID <_____> (Chip Number)
- Go to Remote Access (Option 12)
- Select Access Period
- Select Mode (Direct Access)
- Escape to return to Engineering mode
- Exit Engineering to find the Pro as a Comms module, we also emulate a keypad, typically Comms Module 004 and Keypad 015 – varies between panels
Troubleshooting
- Menu 23: Panel Firmware Version
- Menu 62: Full Set inside Engineering
- Galaxy panels running version V1.4 and below cannot support SIA and are a
pins only integration - Panel Manufactures Default Codes – USER: 1234
- Panel Manufactures Default Codes – ENG: 112233
