Panel Guide
RISCO ProSys – RS232
Panel Connection – RS2485
Manufacturer | RISCO |
Model | ProSYS |
Version | V6 and V7 (not V8 or later) |
Minimum Panel Firmware | N/A |
Cable required? | Provided cable 4 way header |
Panel Profile | N/A |
Panel Connection | RS485 |
Technical Notes | N/A |
DualCom Pro to Panel Wiring
RS485-A | Red |
RS485-B | Green |
RTN | Black |

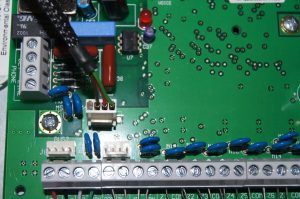

Connect 4 pin header to BUS 1 – see picture below
