Panel Guide

Paradox Evo – TTL

Panel Connection – TTL

Manufacturer

Paradox

Model

Evo

Version

192

Minimum Panel Firmware

V2.1

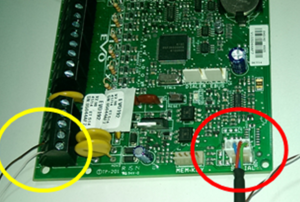

Cable required?

See photo.

Panel Profile

PARADOX-EVO-TTL

Panel Bus Connection

TTL

Panel Connection Information

TTL-T

Molex Pin 3

TTL-R

Molex Pin 4

RTN

Molex Pin 2

PINs

PIN

Panel Setup

  1. Activate dialler. In section 3036 activate sub section 3 and 4 by toggling.
  2. Add account number. In section 3061 insert account number.
  3. Add ARC telephone number. In section 3071 insert any telephone number.
  4. Set alarm reporting format. In section 3070 set value to 6666 (SIA level 2) or set value to 5555 (ContactID).
