Panel Guide
InnerRange Inception – TTL
Panel Connection – TTL
|
Manufacturer |
InnerRange |
|
Model |
Inception |
|
Version |
V0.0.0.2695.R0 |
|
Cable required? |
InnerRange Product Code 9930360USB |
|
Panel Profile |
INNERRANGE-INCEPTION-TTL |
|
Panel Bus Connection |
TTL |
|
Technical Notes |
The white connector plus must be removed from the USB Cable. |
Panel Connection Information
|
TTL |
Green wire from USB Cable |
|
TTL R |
White wire from USB Cable |
|
RTN |
Black wire from USB Cable |

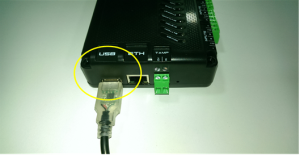

USB Connection
Panel Programming
- The panel is only configurable using the Web Interface. Therefore, an Ethernet cable must be plugged in the panel, and the engineer on site must have a laptop.
- On the supplied USB stick, run ‘Inception Discovery tool’ to find the panel on the network.
- Log in to the panel as installer. The default information is in the panel documentation
- Navigate to: Configuration > General > Alarm Reporting
- Within the alarm reporting menu, select ‘WebWayOne Configuration’
> This will drop down a list of options for WebWayOne Configuration
> Tick ‘Enable WebWayOne Reporting’ - Select your reporting type. Possible options are SIA and Contact ID
- Click save at the top of the screen.
- It is possible to send through a batch of alarms to test, by clicking the ‘Send All Possible Alarms’ button.
