Panel Guide

Aritech Advisor Advanced – ATS7090 – DualCom Pro 1

Panel Connection – Serial connection via ATS7090 board

Manufacturer	Carrier
Model	ATS
Version	Advanced
Minimum DualCom Pro Firmware	DualCom Pro: V2.33
Minimum Panel Firmware	All versions greater and equal to 026.026.0141-0143
Cable required?	Ribbon cable (05-5042) ATS7090 – Peripheral ATS7090 versions less or equal to V1.02 – please use SPT less or equal to V2.06 ATS7090 versions greater or equal to V1.03 – please use SPT greater or equal to V2.07
Panel Profile	ARITECH-ADVANCED-ATS7090
Technical Notes	When configuring the panel with a laptop, disconnect the ribbon cable between the Panel and DC Pro before connecting the Laptop. When finished, you must disconnect the laptop and then reconnect the ribbon cable. ATS7090 Peripheral MUST be situated on AUX3.

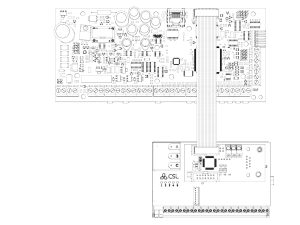

Diagram

Enter ‘Dialler’ menu [9]
Enter ‘CS 1’ menu [1]
Enter ‘Transm Path’ menu [2]
Select Option [‘TDA75XX’]
Enter ‘Protocol’ menu [3]
Select option [‘(X)SIA’]
Enter ‘Accounts’ menu
Select ‘Area N’ with [account numbers]
Enter [Mode] menu
Select option ‘Primary [CS]
Enter ‘Protocol Opt’ menu [8]
Enter [(X)SIA] menu
Set ‘Area Modifier’ to [ON]
Set ‘Name Chars’ to [30]
Set ‘Event Number’ to [3 digits]
Set ‘Subev Codeing [to ‘Decimal]
Set [SIA Frequency] to [Bell]
Go back to [Dialler] menu level
Enter ‘Path Options’ menu [3]
Enter ‘Path Options’ menu [3]
Enter ‘PSTN’ menu [1]
Enter ‘Line Fault’ menu and select option [No]
Go back to ‘Path Options’ menu level.
Enter ‘IP’ menu [4] If present
Enter ‘Line Fault’ menu and select option [No]
Go back to ‘Path options’ menu level
Exit Installer (Engineer) mode
Enter ‘TDA75XX’ menu [7]
Enter ‘Line Fault’ menu and select option ‘If used’
Go Back to Installer Menu level and select Menu 8: Sys Opt > 7: Panel & AB Opts > 9: Remote Config – YES
Exit Installer (Engineer) mode

May require full panel and DC Pro power cycle
User Code: Menu 8:2:1 – Need Acc [YES]
The Area Account in the Alarm Events. This might need to be adjusted in the Panel’s Settings in order to have a specific Area Number not a generic Account Number [Example: Area 1 – 0001, Area 2 – 0002, etc…..]
