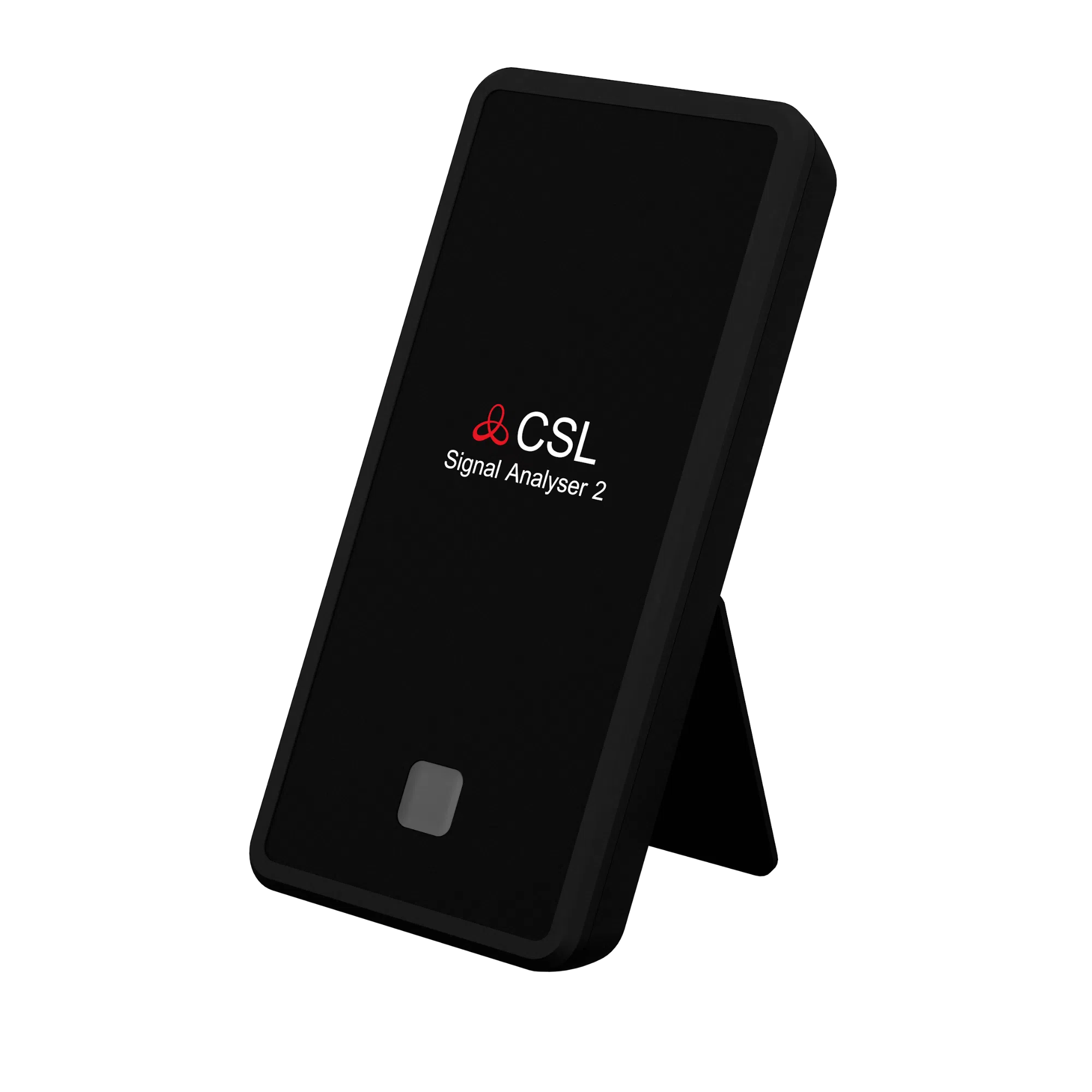

Signal Analyser 2

Operating Frequencies:

LTE: 700, 800, 850, 900, 1800, 1900, 2100, 2300, 2500 and 2600

(Bands: 1, 2, 3, 4, 5, 7, 8, 20, 28, 66, 38, 40, 41)

GSM: 850, 900, 1800 and 1900 MHz

– Bluetooth: 2.4 GHz to 2.483 GHz

– ISM RF: 868 MHz

USB-C Powered 5V, 500mA

Battery Rating 3.7V Lithium Polymer, 1000mAh

Charge device only between 10°C and 35°C Store device between 0°C and 50°C

Equipment model 207565 shall be powered using a power supply / charger (Output 5Vdc, 2A) approved in its country of use

Safety

This product contains a Lithium Polymer rechargeable battery
No user serviceable parts inside

Only use with an approved battery
Batteries may explode, burn or cause a ﬁre if misused or mishandled

DO NOT eat or swallow the battery

DO NOT use if battery or enclosure

damaged in any way

DO NOT expose to liquids or high temperatures

Single and multi-network monitoring
Live analytic function to find the optimum installation location
Device works alongside an App making firmware updates easy and accessible
Ability to connect to an existing aerial
Works across 4G and 2G Networks
No SIM required
Produces exportable reports (PDF)
Multilingual – 11 languages

Model	CS.1.601
Dimensions	150mm x 74mm x 18mm
Weight	73g
Warranty	2 years
Radio Technology	2G/GSM 4G/LTE
Bluetooth	2.4 GHz to 2.483 GHz
ISM RF	868 MHz
Battery	3.7V lithium polymer, 1100mA
Charger/Charging	USB-A to USB-C charging cable Charge device only between 10c and 35C
Aerial Connection	MMCX
Languages	English, German, Spanish, Italian, French, Danish, Dutch, Finnish, Czech, Portuguese, Swedish, English American

LTE: 700, 800, 850, 900, 1800, 1900, 2100, 2300, 2500 and 2600

Bands: 1, 2, 3, 4, 5, 7, 8, 20, 28, 66, 38, 40, 41

GSM: 850, 900, 1800 and 1900 MHz

The radio module in the device is able to work worldwide and therefore the device is able to work in most countries, subject to local approval.

Yes, the 4G Signal Analyser works in Ireland.

The Signal Analyser monitors 2G and 4G only. You can swich between these technologies via the toggle at the bottom on the survey screen.

Yes, the device includes a radio module only which measures 2G and 4G.

The Signal Analyser does not require a sim.

An MMXC to SMA adaptor is included with the Signal Analyser 2, this can be used to connect to SMA.

The device and analyser are connected via Bluetooth. Please ensure the Bluetooth on your mobile is switched on to allow connection.

Once the device has been running for a number of minutes you will notice small dots on the line graph, these can be selected to see more detailed information at that specific time on a particular network.

The device must be monitoring for at least 4 minutes on either Signal Network, Multi Network or Analytic mode before a report can be generated. Once ready you can then select generate report. A report will then be created and ready for you to share and download.

In the saved reports section on the App you can select and view your saved reports along with share them as a PDF via various channels e.g. Airdrop, message, Team, WhatsApp. Once shared you can then open the PDF and view the survey.

As VoLTE just works over a standard 4G frequency (in Europe, this is typically band 20), you should see results for that band in the report. If you untick it, you may not see band 20 in the results.
