Panel Guide
Inim Smartloop – RS232
Panel Connection – RS232
Manufacturer | Inim |
Model | Smartloop |
Minimum Panel Firmware
| V1.0.4 |
Cable required? | Unterminated serial cable with 9 Way D-Type IDC socket |
Panel Profile | INIM-SMARTLOOP-RS232 |
Panel Bus Connection | RS232 |
Technical Notes | If an EN54-compliant installation is required, please also follow the instructions in the DualCom Pro 2 Fire EN54 Variant Quick Guide. |

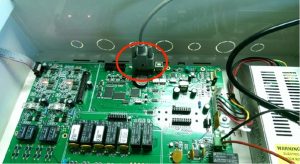

Panel Connection Information
Connection | Panel |
RS232-T | 9 Way D-Type Pin 2 |
RS232-R | 9 Way D-Type Pin 3 |
RTN | 9 Way D-Type Pin 5 |
Panel Programming
- Default panel code = 00004
- Press the ‘ESC’ button to display Menu
- Navigate to Printer settings (the 8 button)
- Within these settings select printer set up (the 2 button)
- Select ‘Log on Serial’ as printer type
- Press the ‘Return’ symbol button
- Press ‘ESC’ until the panel resets
